KSD has been developing and producing studio monitors and mastering speakers for 25 years.
Product design, concept, development in house – handmade and manufactured in Saarbrücken, Germany.

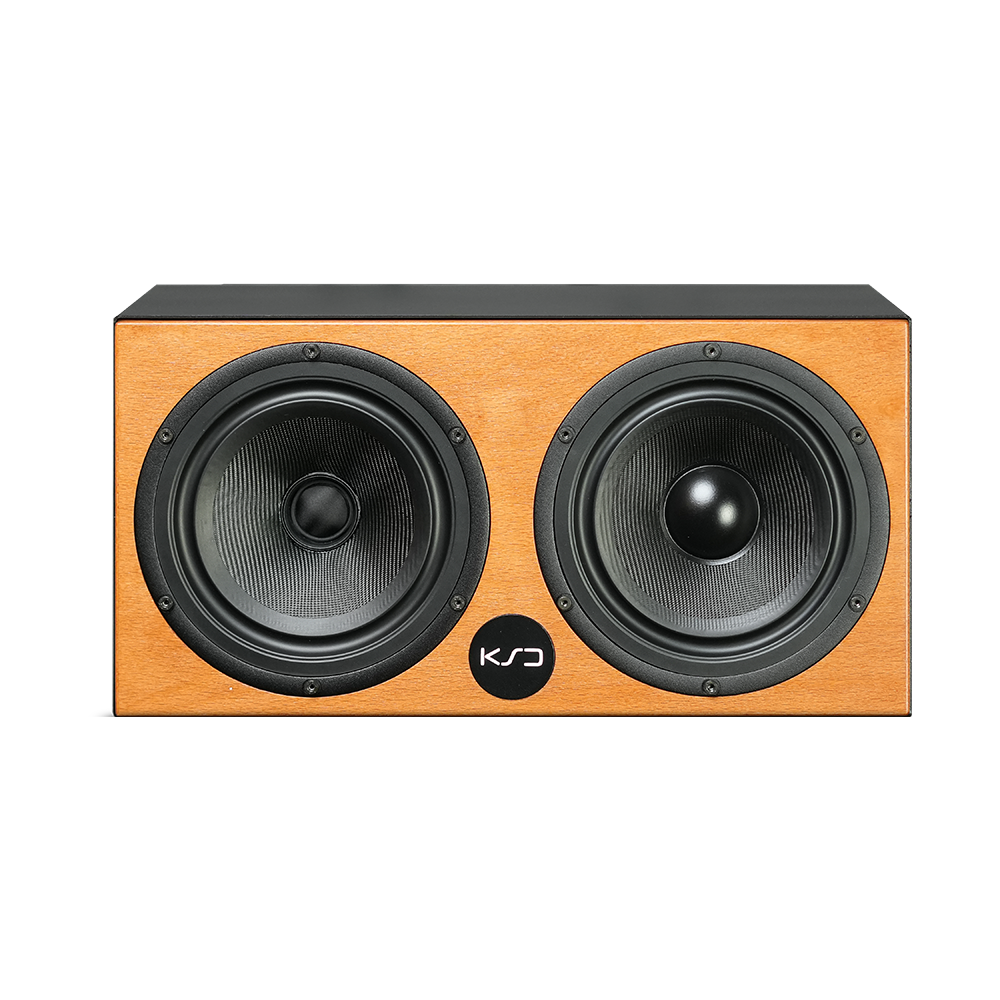

The KSD C55 Reference features a dedicated 5.5′ coaxial-driver and a dedicated 5.5′ woofer, delivering exceptional sound performance. With maximum neutrality and minimum distortion, every sound and every impulse is reproduced precisely and musically. The featured drivers are custom made to KSD spec and proprietary to KSD. The C55 Reference radiates as a true points source and the coaxial design allows the greatest freedom in listening distance and placement, supporting both vertical and horizontal orientations. Six parametric user EQs in the FIRTECTM processor allow perfect adaptation to the listening room and distance.
Left and Right units available with either Natural Cherry, Black or White front panels.
Type: 2.5-way coaxial point sound source – universal horizontal or vertical placement
Drivers: 1′′ neodymium tweeter; Custom made 5.5′′ coaxial chassis, fiber glass cone for sub, 1“ silk tweeter; Custom made 5.5′′ bass chassis, fiber glass cone
Signal Processing: DSP with FPGA based processing by KSD FIRTEC ™ patent:19823110
Features: FIR-Xover, Limiter, 6 User-EQ curves, High & Low Shelving, Delay and Gain
Power Amplifier: 350W
SPL (max): > 108 dB Peak/pair
Frequency Response: 35 – 22000 Hz
Weight: 12.2 kg
Dimensions: 400 x 200 x 140 mm
Compatible with K&M 24471 for wall/ceiling mounting

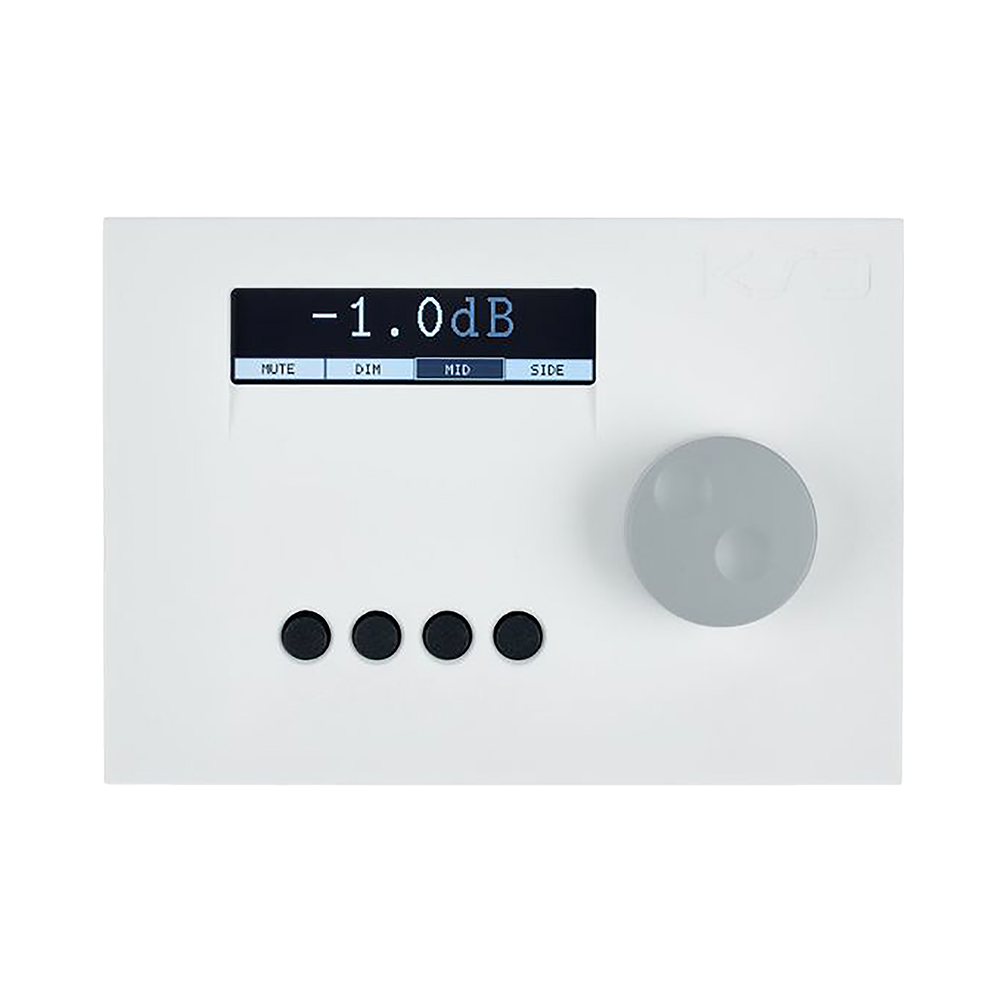

Optional: Remote Control (KSD-RC) controls 6 user EQs, volume, delay, dim, M/S
Finish Options: Front available in Natural Cherry, Black or White

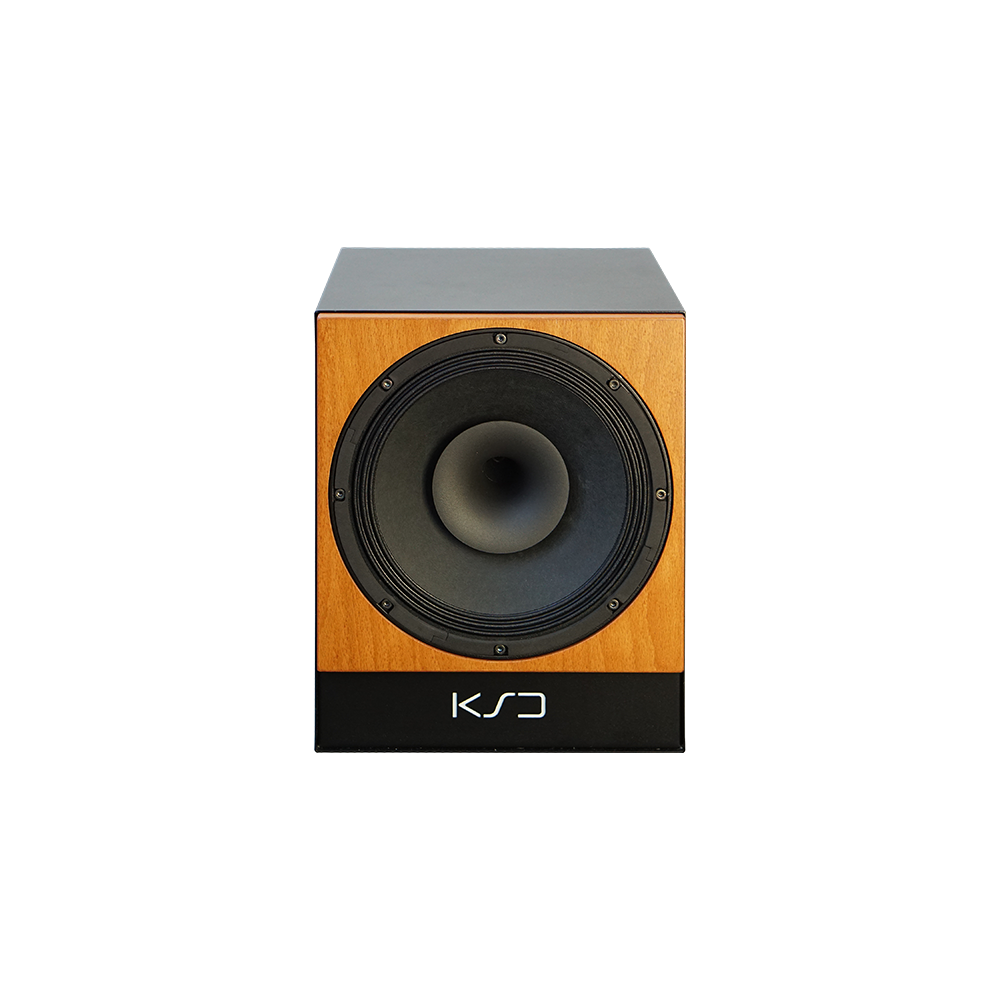

The KSD C100 Reference is a high-performance coaxial speaker designed to meet the rigorous demands of professional applications such as mixing, recording, broadcasting, and immersive use. This versatile monitor excels in both stereo and immersive multi-channel environments. Its coaxial design, paired with a conical 70° horn, optimizes radiation behavior to create an ideal sweet spot, making it perfect for any studio setting, including acoustically challenging spaces. The KSD C100 Reference incorporates KSD’s proprietary FIRTEC™ technology for frequency and phase linearization, enhancing impulse response and precise sound source mapping.
Left and Right units available with either Natural Cherry or Black front panels.
Type: 2-way coaxial point sound source
Signal Processing: DSP with FPGA based processing by KSD FIRTEC ™ patent:19823110
Features: FIR-Xover, Limiter, 6 User-EQ curves, High-&Low Shelving, Delay, Gain
Drivers: Coaxial chassis with 1″ compression driver on 70° horn and 10″ high-performance woofer/midrange driver
Power Amplifiers: 250W/250W
SPL (max): 118 dB Peak/pair
Frequency Response: 35 – 22000 Hz
Weight: 15 kg
Dimensions: 285 x 350 x 350 mm
Accessories: Table stand/wall mount optional
Optional: Remote Control (KSD-RC) controls 6 user EQs, volume, delay, dim, M/S
Finish Options: Front available in Natural Cherry or Black

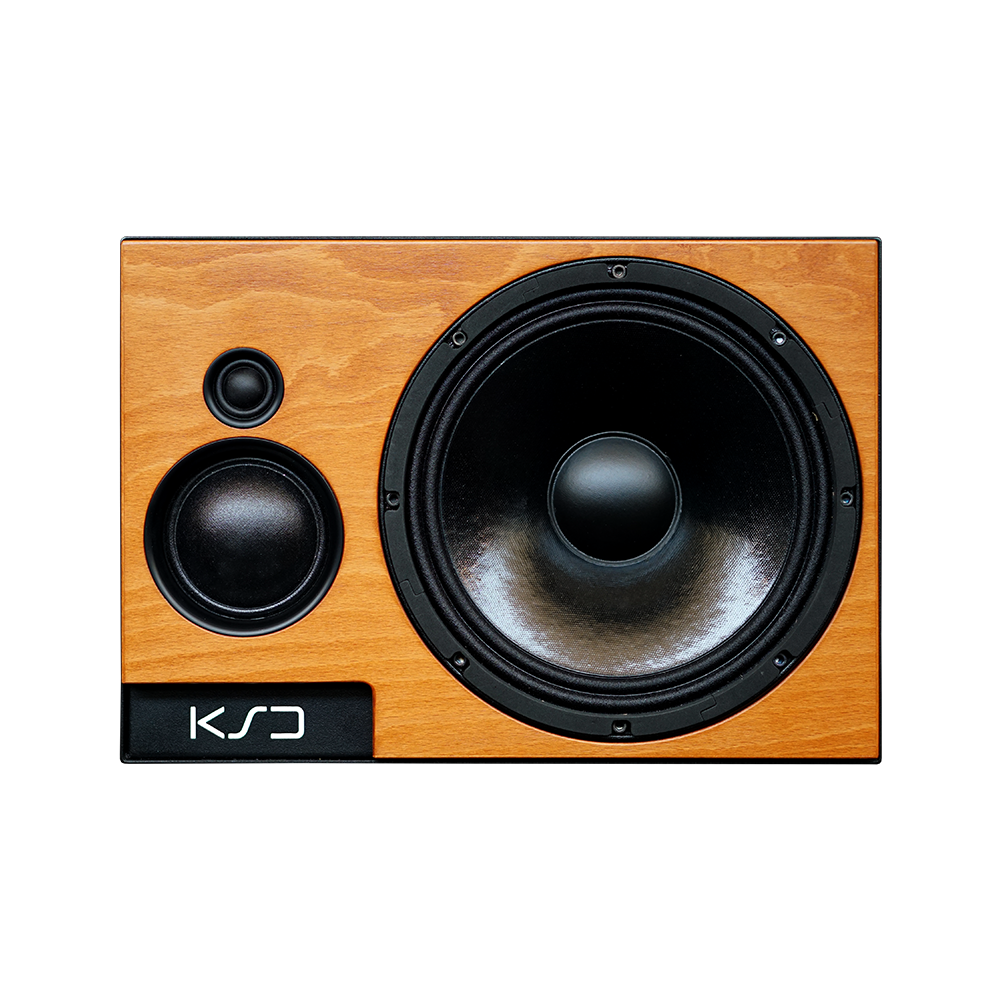

The KSD A200mk2 is a compact 3-way reference monitor that excels in delivering precise and accurate sound reproduction across various professional production processes, such as recording, mixing, and mastering. Utilizing advanced phase-linear FIRTEC™ technology, the KSD A200mk2 ensures that all frequencies are radiated simultaneously, achieving unparalleled tonal neutrality and timeliness. Its innovative design includes a new mid-high-range unit, combining a 3″ midrange dome and a 1″ tweeter in an aluminum waveguide for a homogeneous sound field suitable for both vertical and horizontal orientations.
Left and Right units available with either Natural Cherry or Black front panels.
Type: 3-way main monitor
Inputs: Analog In +4dBV; Digital In: AES3 32-192KHz fs
Signal Processing: DSP with FPGA based processing by KSD FIRTEC ™ patent:19823110
Features: FIR-Xover, Limiter, 6User-EQ, High & Low Shelving, Delay, Gain
Drivers: 1″ fabric/silk tweeter, 3″ dome midrange driver, 10″ high-performance bass chassis
Power Amplifiers: 250W/250W/150W
SPL (max): 116/124 dB continuous/Peak by pair
Frequency Response: 28 – 22000 Hz
Weight: 17.2 kg, incl. packaging 20 kg
Dimensions: 420 x 300 x 310 mm
Optional: Remote Control (KSD-RC) controls 6 user EQs, volume, delay, dim, M/S.
Finish Options: Front available in Natural Cherry or Black

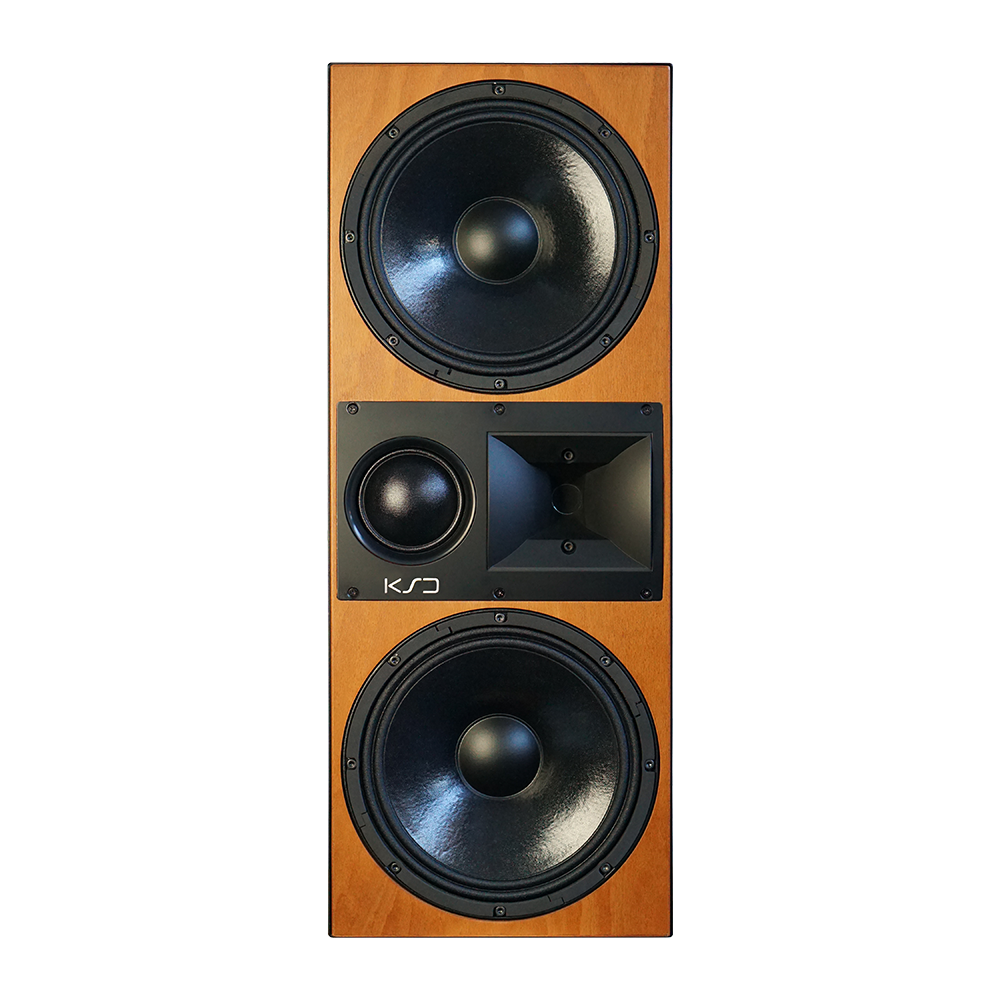

The KSD A500 3-Way Monitor is the flagship model of the KS Digital A-Class, designed with dual 10″ bass drivers and a horn-supported tweeter for robust, accurate sound reproduction. Engineered for professional studios, the KSD A500 excels as a 3-way reference monitor, delivering high sound pressure and precise tonal reproduction. Its advanced FIRTECTM phase-linear filters and dedicated 3″ dome midrange driver ensure a detailed, clear, and time-correct sound conversion, providing an unmatched resolution in the sound image and a precise virtual stage.
Left and Right units available with either Natural Cherry or Black front panels.
Type: 3-way reference monitor
Drivers: Two 10″ high-performance bass drivers, 3″ dome midtone driver, 1″ compression driver on an 80°x60° horn
Amplifiers: 3 PWM power amplifiers, each with 250 W RMS power
Signal Processing: DSP with FPGA based processing by KSD FIRTEC ™ patent:19823110
Sound Conversion: Time-correct sound conversion with phase-linear FIRTEC ™ filters
Frequency Response: Linear, enhanced by 80°x60° horn for minimal housing edge interference
Maximum Output: High sound pressure levels with minimal distortion
Connectivity: Analog input with 24 bit/192 KHz AD converter, Digital connection options for seamless studio integration
High and low shelving controls on the amp
Optional: Remote Control (KSD-RC) controls 6 user EQs, volume, delay, dim, M/S
Finish Options: Front available in Natural Cherry or Black

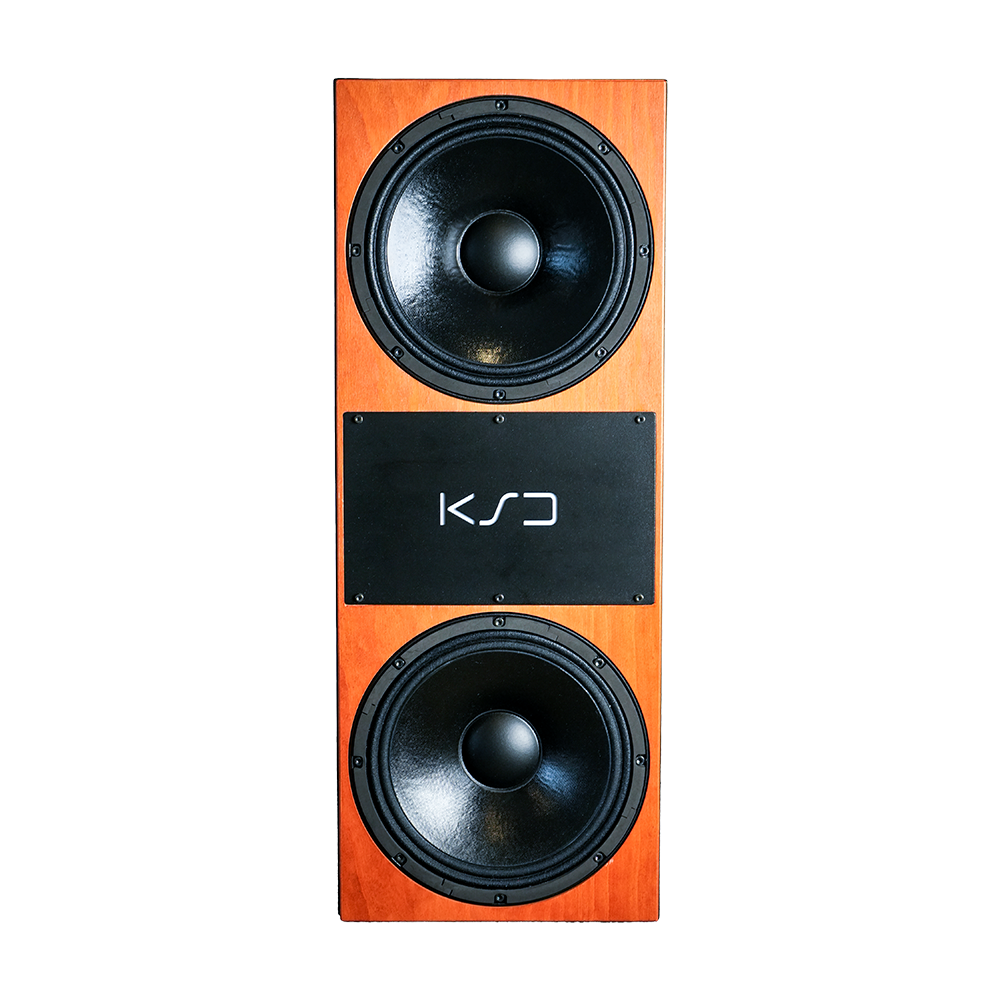

The KSD B500 Subextension is the ideal partner for expanding the performance of KSD main monitors such as the KSD A500, KSD A200mk2 or the KSD C100 Reference.
In combination with the KSD B500, the main monitors experience extreme relief when it comes to reproducing the lower octave. The double ten-inch drives with 1000W amplifier power per pair not only increase the maximum sound power, but also give the entire system a different level of performance. In interaction with the bass chassis of the top parts, the common membrane area multiplies, resulting in an almost planar wave front in the bass. This significantly improves the room illumination in the bass with fewer mode-related room problems.
To ensure a controlled and powerful reproduction of deep bass frequencies, the B500 Subextension is controlled via the XLR sub-output of the main monitor with time-correct sound conversion using the patented FIRTECTM technology. The digital signal processor linearizes the frequency response, while internal filters allow for precise tuning to the room and application. Additionally, the adjustable delay compensates for any spatial offset between the B500 and the satellites.
Available with either Natural Cherry and Black front panels.
Type: Double 10″ bass extension for KSD A200mk2, KSD A500 and KSD C100 Reference
Signal Processing: DSP with FPGA based processing by KSD FIRTEC ™ patent:19823110
X-Over: 80 Hz Bessel filtered – forms a main monitor unit in combination with Top
Processing: Limiter, 6User-EQ, High & Low shelving, Delay, Gain (via KSD-RC)
2 pieces of 10″ high-performance woofer
Power: 1000W (RMS)
SPL (max): > 132dB Peak/pair (A500)
Frequency response: 24 – 22000 Hz (including main)
Weight: 30kg, incl. packaging 32kg
Dimensions: 480 x 240 x 310 mm
Optional: Remote Control (KSD-RC) controls 6 user EQs, volume, delay, dim, M/S
Finish Options: Front available in Natural Cherry or Black

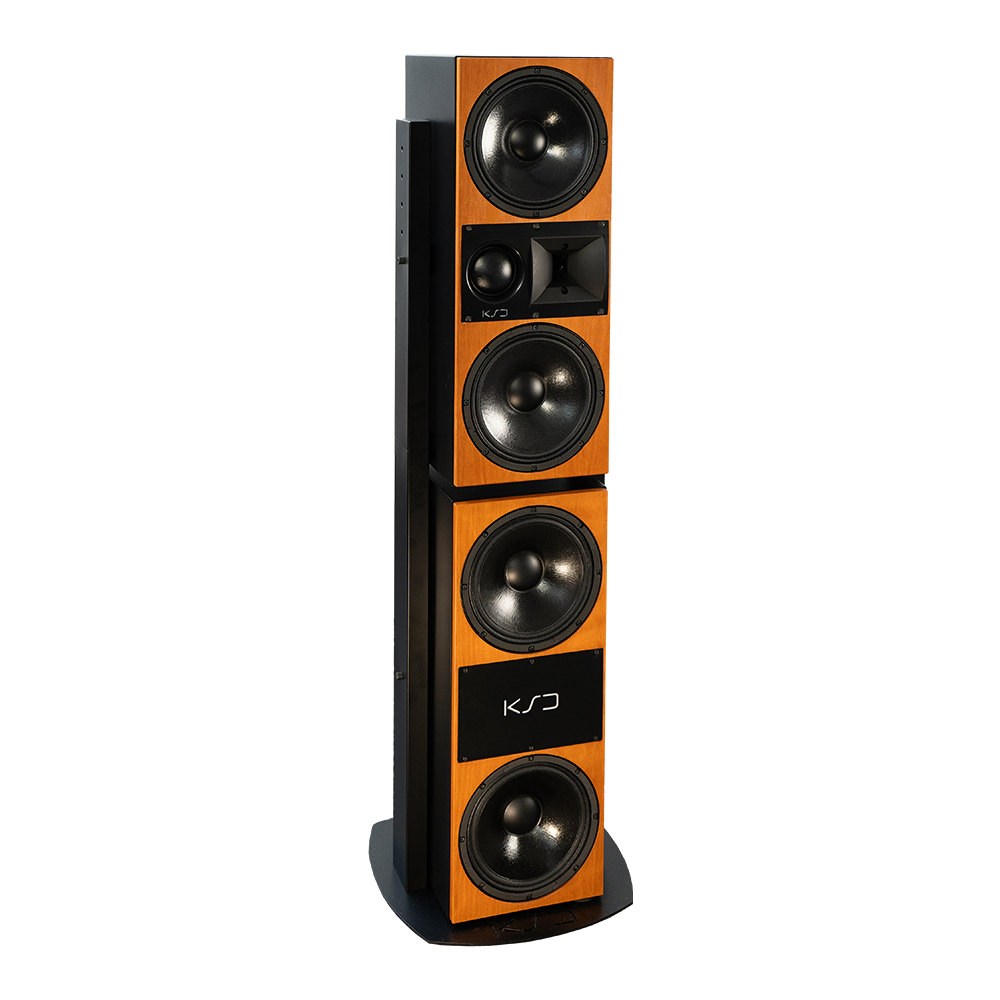

The KSD Mainmaster consists of the KSD A500 paired with the KSD B500 Subextension, configured with a proprietary support stand, and presents the ultimate monitoring solution tailored for all stages of the recording, mixing, and mastering process. It combines high-performance features with innovative technology to deliver pulse-accurate, time-correct playback across all sound levels, even in large control rooms. Featuring a dual 10″ sub-chassis and dedicated 3″ dome driver, the KSD Mainmaster offers extreme resolution and tonal precision. The horn-supported high frequencies create a wide, distortion-free sweet spot, ensuring exceptional clarity and dynamic sound reproduction.
Left and Right units available with either Natural Cherry or Black front panels.
Type: 3-way main monitor for free field and wall installation
Signal Processing: DSP with FPGA based processing by KSD FIRTEC ™ patent:19823110
Features: Subtraction Xover, Limiter, 6User EQ, High & Low Shelving, Delay, Gain
Drivers: 1″ compression driver on 80°x60° horn, 3″ dome midrange driver, 4 pcs. 10″ high performance bass chassis
Power Amplifiers: >750W/250W/200W
SPL (max): >124/>132 dB peak
Frequency Response: 24 – 22000 Hz
Weight: 80kg
Dimensions: 29 x 73 x 34 cm (top), 29 x 73 x 34 cm (Subextension)
Optional: Remote Control (KSD-RC) controls 6 user EQs, volume, delay, dim, M/S
Finish Options: Front available in Natural Cherry or Black

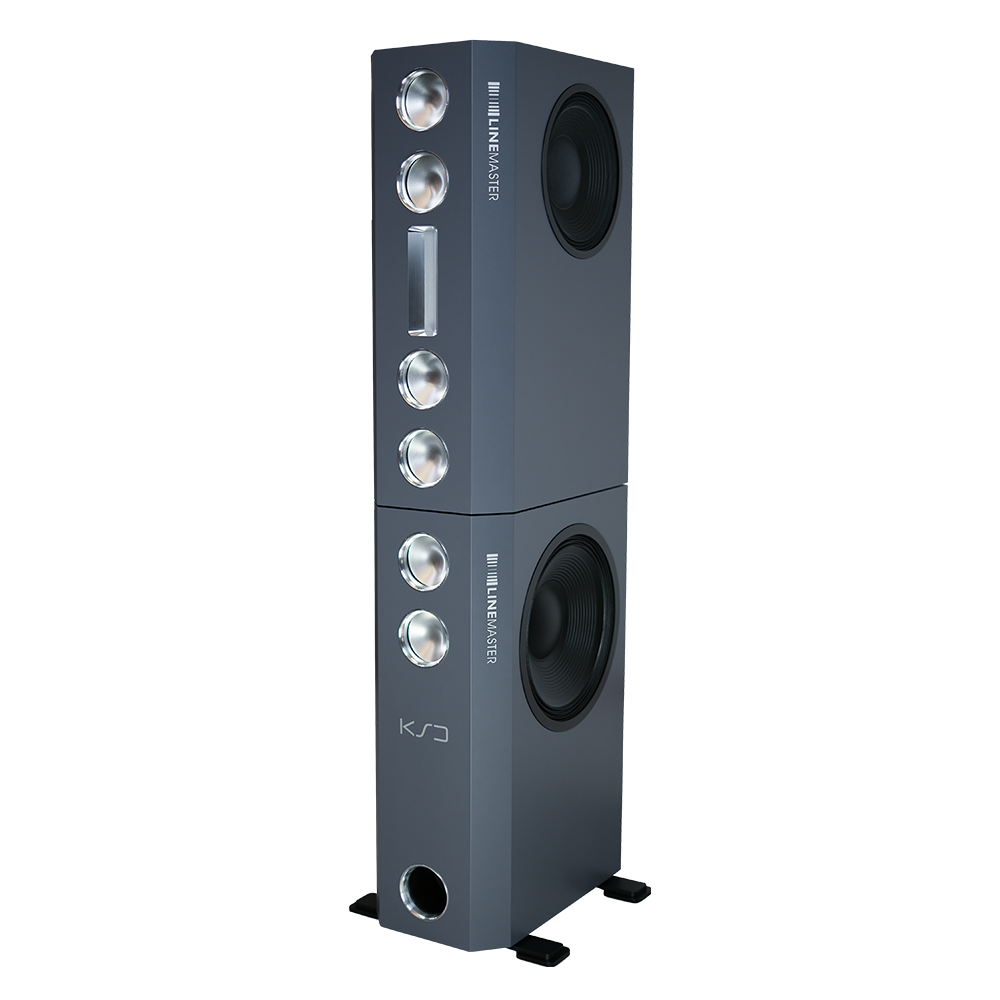

The KSD Linemaster sets a new benchmarks in loudspeaker construction and a new standard for recording and mastering performance. Operating with the highest degree of sonic neutrality, the KSD Linemaster delivers a perfect holographic stage with maximum impulse control at even the highest monitoring levels.
Technically realized by our phase-linear KSD-FIRTEC™ processor, the music signal is converted into sound using the innovative NExT™ technology (Pat.:DE102015102643A). This generates a cylindrical wave that brings significantly more information to the engineer’s ear, allowing exceptional control. The power amplifiers with a system output of >2000W ensure minimal distortion and guarantee unmatched reproduction performance.
Exceptional low-frequency performance is provided by the combination of two sensor-regulated 12“ performance drivers with an additional (vented) dual 15” sub-chassis. The latency-free cone control of the 12“ drivers converts the low frequencies in the music signal into sound in an extremely controlled and resonance-free manner, while the two vented 15” drivers provide the necessary boost, even and especially at higher SPL levels. The combination of NexT™ technology and this exceptional bass drive offers an unheard-of performance with perfect control throughout the entire creative process in the studio.
Left and Right units in a striking Platinum finish. Custom finishes also available.
Type: Linear phase mastering monitor utilizing cylindrical wave technology
Signal Processing: DSP with FPGA based processing by KSD FIRTEC ™ patent:19823110
Features: Subtraction Xover, Limiter, 6User EQ, High & Low Shelving, Delay, Gain
Drivers: Dual 15” long excursion, high performance woofers, dual 12” high performance woofers featuring DMC control cones, 6 5” high performance mid woofers featuring composite cones and a unique KSD-Fraunhofer-NExT cylindrical wave radiator
Power Amplifiers: >2000W per side
Frequency Response: 18 – 24000 Hz
Weight: 44.6 Kg (top), 47 Kg (Subextention)
Dimensions: 81 x 30 x 40 cm (top) – 82 x 30 x 40 cm (Subextension)
Optional: Remote Control (KSD-RC) controls 6 user EQs, volume, delay, dim, M/S
Finish Options: Available in a striking Graphite finish. Custom finishes also available.
